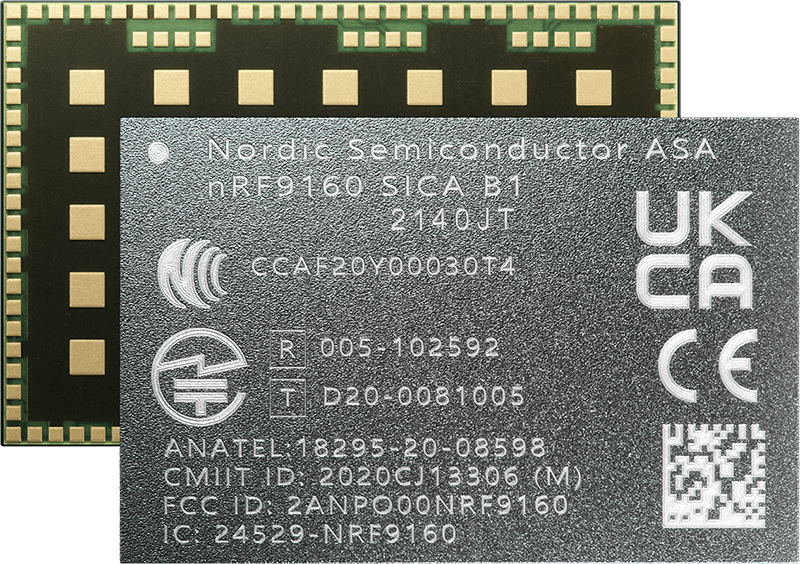

nRF9160 System-in-Package

The nRF9160 is a compact, highly integrated System-in-Package (SiP) that makes the latest low power LTE technology and advanced processing and security accessible, and easy to use, for a wide range of single device low power cellular IoT designs.

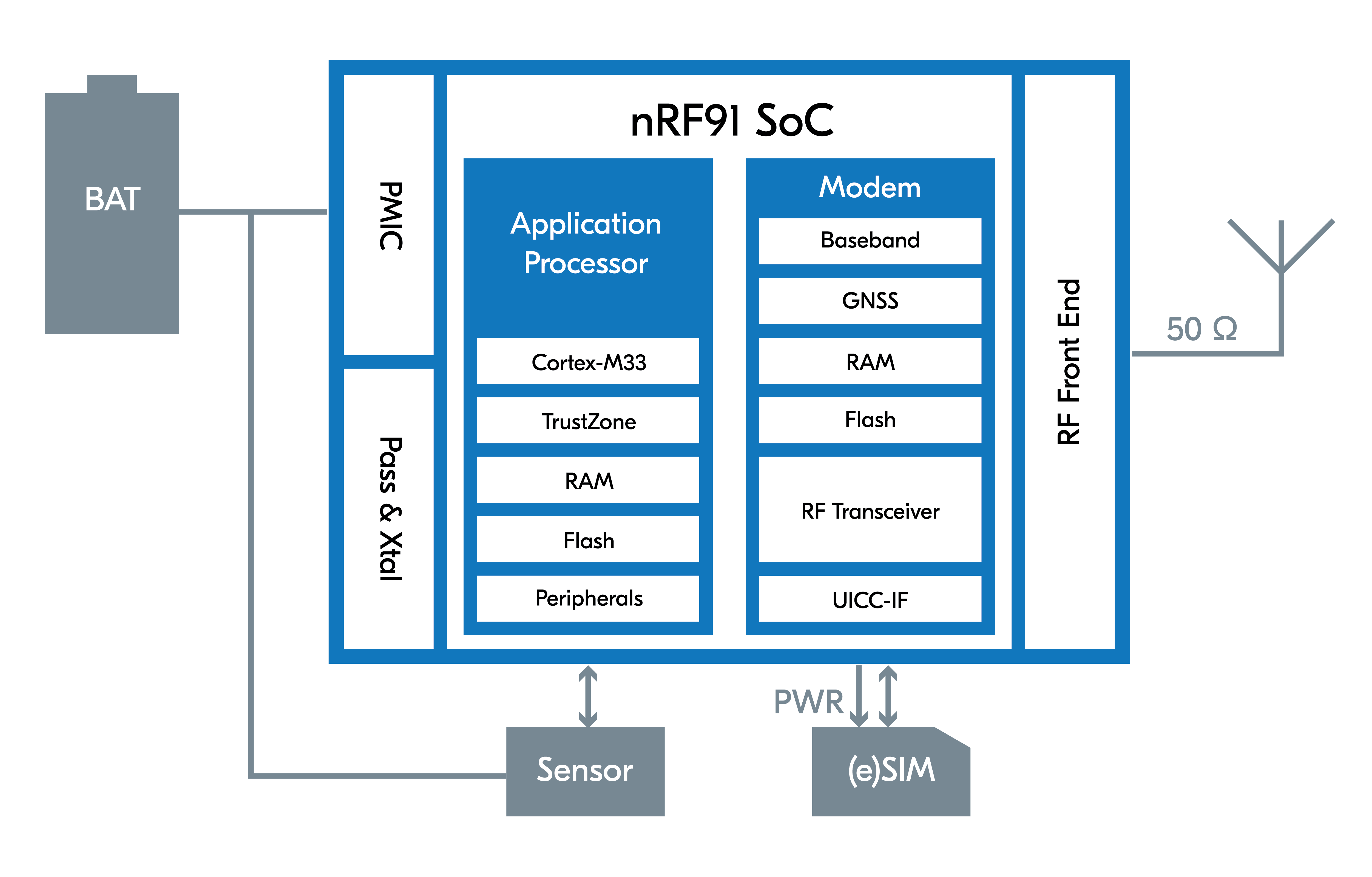

Incorporating an Arm Cortex-M33 application processor solely for applications, a full LTE modem, RF Front End (RFFE) and power management system. The nRF9160 is the most compact, complete and energy-efficient cellular IoT solution on the market.

The integrated modem supports both LTE-M and NB-IoT and can operate globally removing any need for regional variants. All power-saving features including eDRX and PSM are supported as is with IPv4/IPv6 support up to transport and security (TCP/TLS) level. The modem firmware is upgradable via secure, encrypted Firmware Over The Air (FOTA) updates.

The Arm Cortex-M33 application processor is supported by 1 MB of flash and 256 KB RAM making advanced application development possible in a single device solution.

A GNSS receiver is integrated into the radio offering various modes of operation to suit a wide selection of applications that employ location-tracking functionality. The nRF9160 SiP also supports different cellular-based location features for several use cases.

A broad selection of general interfaces and peripherals are included on nRF9160 including 12-bit ADC, RTC, SPI, I²C, I²S, UARTE, PDM and PWM.

Security is best-in-class with Arm TrustZone technology for isolation and protection of normal and secure zones for firmware and elements of hardware including memory and peripherals. Arm TrustZone helps build solid and secure IoT applications that feature secure boot, trusted firmware updates and root of trust implementations without performance compromise. The nRF9160 is also PSA Level 2 certified, more details on security here.

Arm CryptoCell enhances security further by offering cryptographic and security resources to help protect your IoT applications from various attack threats. CryptoCell is designed for high-performance cryptography solutions optimized for energy-constrained devices.

The nRF9160 supports both SIM and eSIM for connection and authentication with mobile network operators.

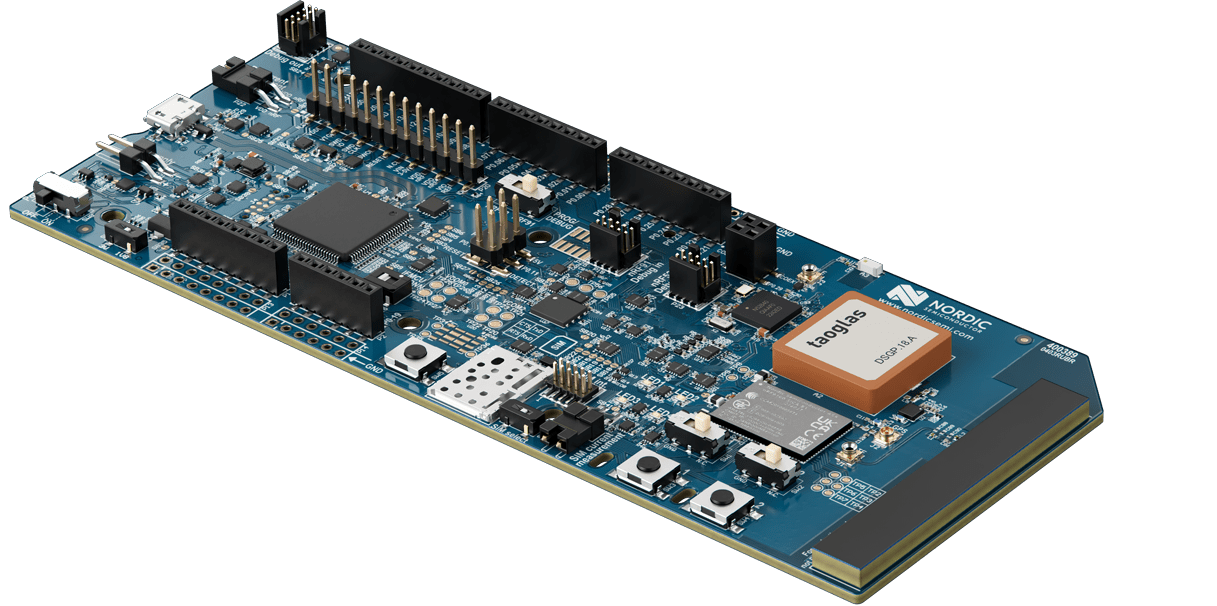

The nRF9160 hardware and development kits are now in production and are suitable for the full end-to-end sensor to cloud development. We’re still developing features and optimizing performance.

The nRF9160 can easily utilize the Cloud Services offerings such as FOTA, Location services, and more.

LTE bands B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28 and B66 have been certified so far. See this page for more details.

For new design projects we recommend selecting the nRF9151

Download nRF9160 SiP product brief (PDF)
