nRF9151 key features
|
|
|---|---|

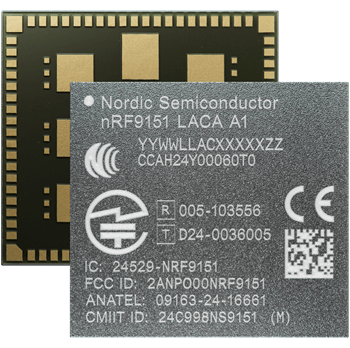

| nRF9151 SiP module | |
| CPU | |
| CPU |
Arm Cortex-M33 @ 64MHz for the user application |
| Flash / RAM | |
| Flash / RAM |
1 MB / 256 KB |
| Arm Trustzone | |
| Arm Trustzone |
✔️ |
| Crypto acceleration | |
| Crypto acceleration |
Arm Cryptocell 310 |
| Integrated PMIC, passives & Xtral | |
| Integrated PMIC, passives & Xtral |
✔️ |
| Pre-certified | |
| Pre-certified |
✔️ |
| LTE-M | |
| LTE-M |
3GPP rel 14 |
| NB-IoT | |
| NB-IoT |
3GPP rel 14 |
| DECT NR+ | |
| DECT NR+ |
✔️ |
| NTN (Non-Terrestrial Networks) | |
| NTN (Non-Terrestrial Networks) |
B23/B252, B255 and B256 |
| Certified Bands | |
| Certified Bands |
1-5, 8, 12, 13, 17-20, 25, 26, 28, 65, 66, 85 |
| Frequency | |
| Frequency |
700-2200 MHz (LTE) |
| Power Class 3 23 dBm | |
| Power Class 3 23 dBm |
✔️ |
| Power Class 5 20 dBm | |
| Power Class 5 20 dBm |
✔️ |
| SGP.02/SGP.22/SGP.32 Support | |
| SGP.02/SGP.22/SGP.32 Support |
✔️ |
| nuSIM | |
| nuSIM |
✔️ |
| Onomondo SoftSIM | |
| Onomondo SoftSIM |
✔️ |
| SPI | |
| SPI |
Up to 4x SPI master/slave with EasyDMA |
| UART | |
| UART |
Up to 4x UART (CTS/RTS) with EasyDMA |
| I2C | |
| I2C |
Up to 4x I2C compatible two-wire master/slave with EasyDMA |
| I2S | |
| I2S |
I2S with EasyDMA |
| PDM | |
| PDM |
Digital microphone interface (PDM) with EasyDMA |
| PWM | |
| PWM |
4x pulse width modulator (PWM) unit with EasyDMA |
| ADC | |
| ADC |
12-bit, 200 ksps ADC with EasyDMA - eight configurable channels with programmable gain |
| Timers | |
| Timers |
3x 32-bit timer with counter mode |
| RTC | |
| RTC |
2x real-time counter (RTC) |
| PPI | |
| PPI |
Programmable peripheral interconnect (PPI) enabling autonomous peripheral operation |
| Supply Voltage Range | |
| Supply Voltage Range |
3.0 to 5.5 V |
| Operating temperature | |
| Operating temperature |
-40 to 85°C |
| GPIOs | |
| GPIOs |
32 general purpose I/O pins |
| Package options | |
| Package options |
11x12x1 mm LGA |
Development kits
利用 nRF9161 进行评估、原型设计和开发
nRF9151 SMA DK
High-performance development kit with SMA connectors for LTE-M, NB-IoT, GNSS, NTN and DECT NR+. The professional choice for RF evaluation and testing on the nRF9151 SiP
nRF9151 DK
Affordable, pre-certified cellular IoT development kit for LTE-M, NB-IoT, GNSS and DECT NR+. Perfect for evaluation and development on the nRF9151 SiP
Nordic Thingy:91 X
The Nordic Thingy:91 X is a cellular IoT prototyping platform based on the nRF9151 SiP supporting LTE-M, NB-IoT, NR+ and GNSS. It also contains nRF7002 Wi-Fi 6 companion IC to enable SSID-based Wi-Fi locationing, making it ideal for any type of asset tracking applications.
