nRF9160 global and regulatory certifications
Revision 1
Global and regulatory
Certifications

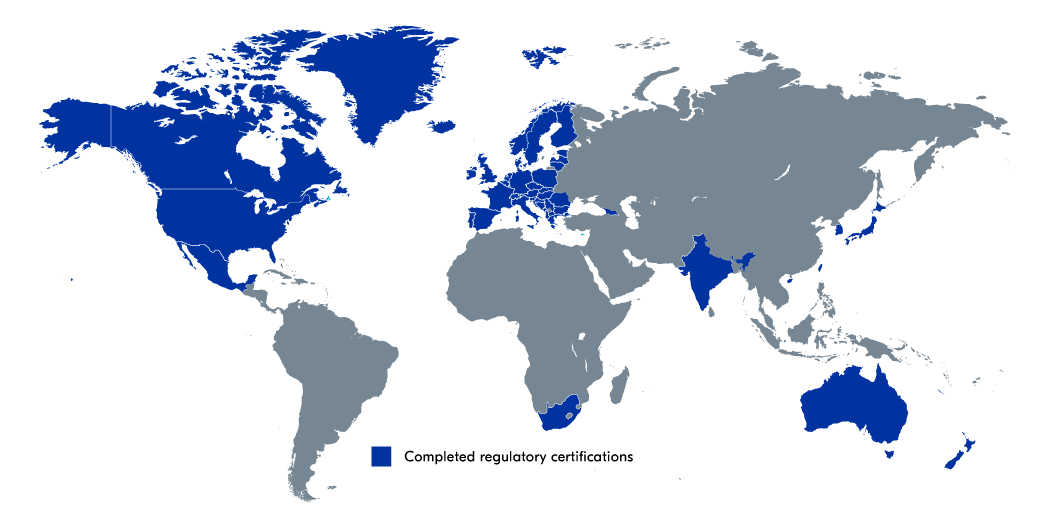

The map below shows completed and ongoing regulatory certifications for the nRF9160 Revision 1 (SIxA-B0) all over the world. Please look here for nRF9160 Revision 2 (SIxA-B1) certifications.

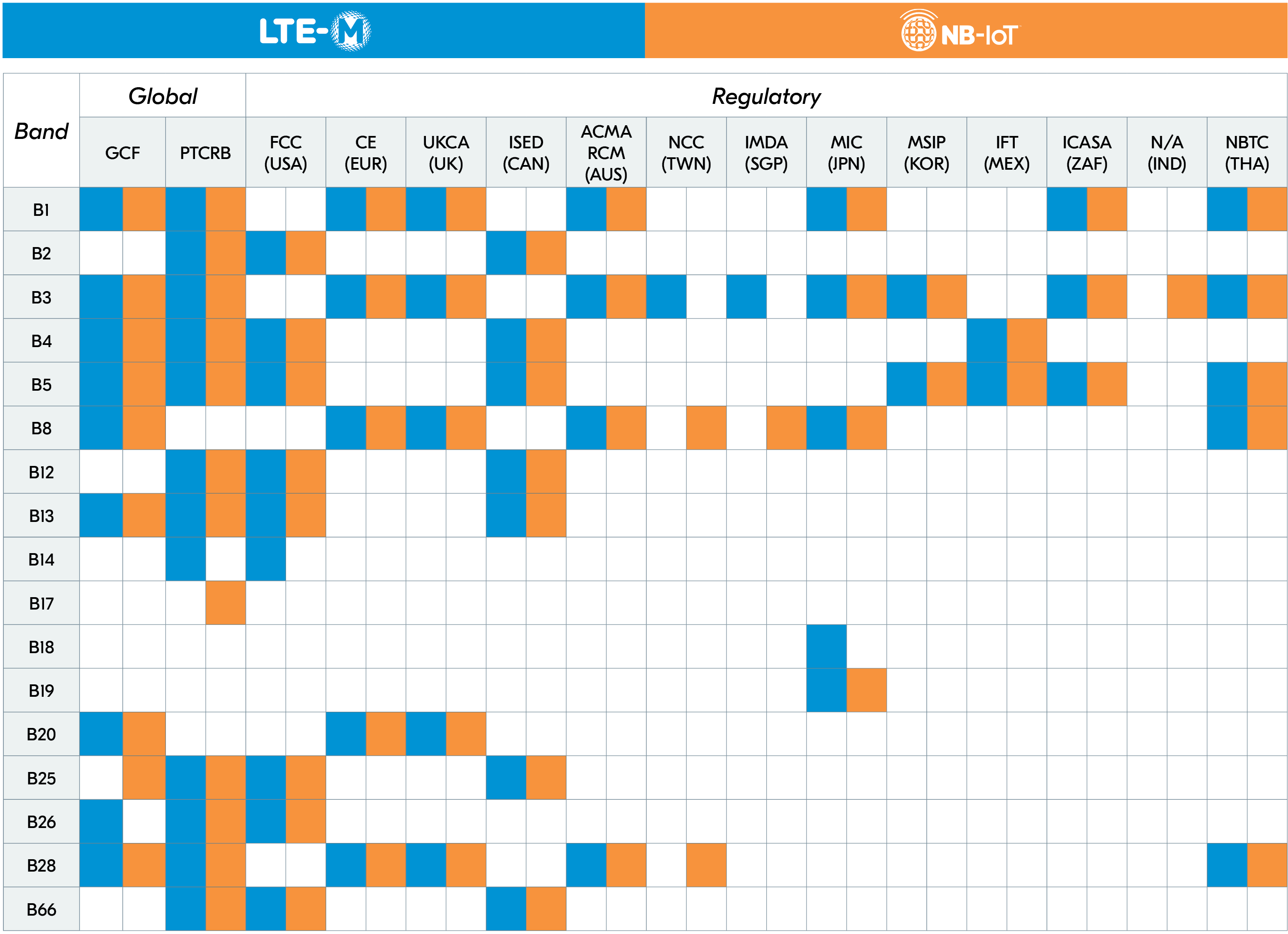

The table below gives an overview of all global (GCF, PTCRB) and regulatory certifications the nRF9160 has for the different LTE bands, for both LTE-M and NB-IoT. Scroll down to see the actual certificates.
Regulatory
Certificates
FCC (United States)
- Intentional radiator Part 27 (TNB equipment class)
- Unintentional radiator Part 15B (Class B Digital Device: JAB equipment Class)
- Unintentional radiator Part 15B (Receiver working in frequency range 30-960 MHz)
CE (Europe)
- nRF9160 SiP EU declaration of Conformity
- nRF9160 SiP certificate
- nRF9160 DK EU declaration of Conformity
- nRF9160 DK certificate
- Nordic Thingy:91 EU declaration of Conformity
UKCA (United Kingdom)
ISED (Canada)
ACMA RCM (Australia
NCC (Taiwan)
IMDA (Singapore)
MIC (Japan)
Japan’s TELEC regulatory approval requires the use of antennas with less than 3 dBi gain in any direction. This is a non-exhaustive list of antennas we expect to meet that requirement. Please follow the reference design from the antenna vendor.
| No. | Manufacturer | Model No. | Freq. | Peak Gain | Connection |
| 1 | Antenova | SR4L002 |
698 – 798 MHz |
2,5dBi | SMD |
| 2 | Antenova | SRFC015 |
824-960MHz |
2,5dBi | SMD |
| 3 | Johanson Technology |
0830AT54A2200 |
700-800MHz |
2dBi | SMD |
| 4 | Siretta | Delta 1A |
850,900,1800MHz |
2dBi | SMA male |
| 5 | Siretta | Echo 40 |
790-960MHz |
2dBi | u.FL plug |
| 6 | STAF | T16-062-1015 |
814-960MHz |
3dBi | u.FL plug |
| 7 | STAF | T16-062-1022 |
814-960MHz |
3dBi | u.FL plug |
| 8 | STAF | T16-062-1023 |
814-960MHz |
3dBi | MHF plug |
| 9 | STAF | T16-062-1016 |
814-960MHz |
3dBi | MHF4L |
| 10 | STAF | T16-062-1025 |
814-960MHz |
3dBi | MHF plug |
| 11 | STAF | T16-062-1024 |
814-960MHz |
3dBi | MHF4L |
| 12 | STAF | T18-018-1098 |
814-960MHz |
3dBi | Solder |
| 13 | STAF | T17-058-1069 |
689-960MHz |
3dBi | SMA-P |
| 14 | STAF | T17-058-1069 |
698-960MHz |
3dBi | SMA-P |
| 15 | STAF | 13-023 |
815-960MHz |
3dBi | u.FL plug |
| 16 | STAF | T13-023-1001 |
815-960MHz |
3dBi | MHF4L |
| 17 | Unictron | CC26DH |
824-960MHz |
2.4dBi | SMD |
| 18 | Unictron | CC40D7 |
824-960MHz |
2.9dBi | SMD |
| 19 | Unictron | CC26DV |
824-960MHz |
2.2dBi | SMD |
| 20 | Unictron | AA880 |
824-960MHz |
2.8dBi | SMD |
| 21 | LS Mtron Co. Ltd. | LS01-I-19001-A0 |
814MHz~930MHz |
0,38dBi | Spring Contact |
| 22 | TAOGLAS | GA.111.101111 |
698~960MHz/ |
1,89dBi | SMA(M) |
| 23 | TAOGLAS | MGA1.101111 |
698~960MHz/ |
1,57dBi | SMA(M) |
| 24 | TAOGLAS | PA.700.J |
700~2600MHz |
2,7dBi | SMA-Female |
| 25 | TAOGLAS | TG.08.0113 |
698 to 960MHz, 1561MHz, |
0,94dBi | SMA(M) |
| 26 | TAOGLAS | TG.10.0113 |
698MHz to 960MHz, |
1,3dBi | Hinged SMA(M) |
| 27 | TAOGLAS | TG.10R.A.0113 |
700~800 |
2,5dBi | Hinged SMA(M) |
| 28 | TAOGLAS | TL.10.1HH11W |
698MHz to 960MHz, |
1,7dBi | NMO |
| 29 | Ethertronics | P822601 |
698-960 MHz |
2.6 dBi 4.4 dBi 3.4 dB |
SMD |
| 30 | Fractus Antennas | FR01-S4-210 |
698-960 MHz |
1.1 dBi 2.4 dBi |
SMD |
| 31 | Ethertronics | P822601/P822602 |
690-810 MHz |
1.56 dBi 2.7 dBi 3.0 dBi |
SMD |
| 32 | LS Mtron Co. Ltd | Braveridge AB Tracker (LS01-I-20013-A0) |
814-960 MHz |
1.55 dBi 2.46 dBi |
Spring Contact |
