nRF54LM20 DK Development kit

Development kit featuring the nRF54LM20B wireless SoC

The nRF54LM20 DK is the development kit for the nRF54LM20A and nRF54LM20B SoCs. The affordable single-board development kit makes all features of the wireless SoC available to the developer.

The nRF54LM20 DK is supported by a comprehensive set of nRF Connect tools and has support in the nRF Connect SDK. Developers can explore the full potential of the nRF54LM20A using the extensive range of software samples, modules, and libraries available within the nRF Connect SDK. Development on the nRF54LM20B and its integrated Axon NPU is supported by the Edge AI Add-on for nRF Connect SDK.

The nRF Connect SDK Fundamentals, and Bluetooth Low Energy Fundamentals  in Nordic Developer Academy support the nRF54LM20 DK. These courses have more than 25,000 enrollments from developers, have received an average rating of 9/10, and provide more than 30 hours of in-depth training.

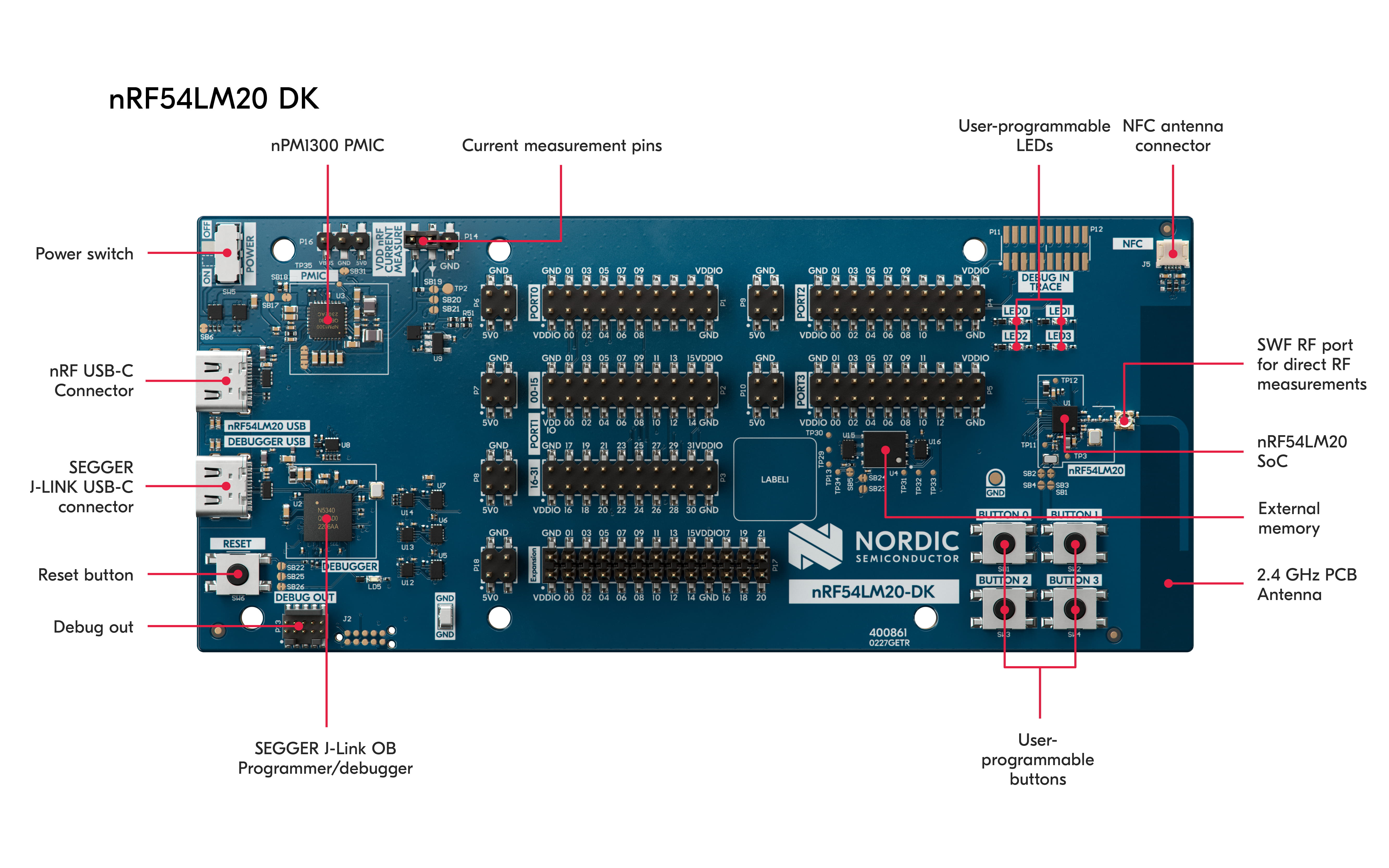

Key features
  • nRF54LM20B wireless SoC
  • nRF54LM20A available as emulated target
  • 2.4 GHz and NFC antennas
  • SWF RF connector
  • SEGGER J-Link OB programmer/debugger
  • User-programmable LEDs (4) and buttons (4)
  • Pins for measuring power consumption
  • 8 MB external flash memory
  • Two UART interfaces through virtual serial ports
